KENAIR®REFPLAT®Innovative application design of series of refractories for aluminum casting
KENAIR®REFPLAT® Refractory Series – Application Guide

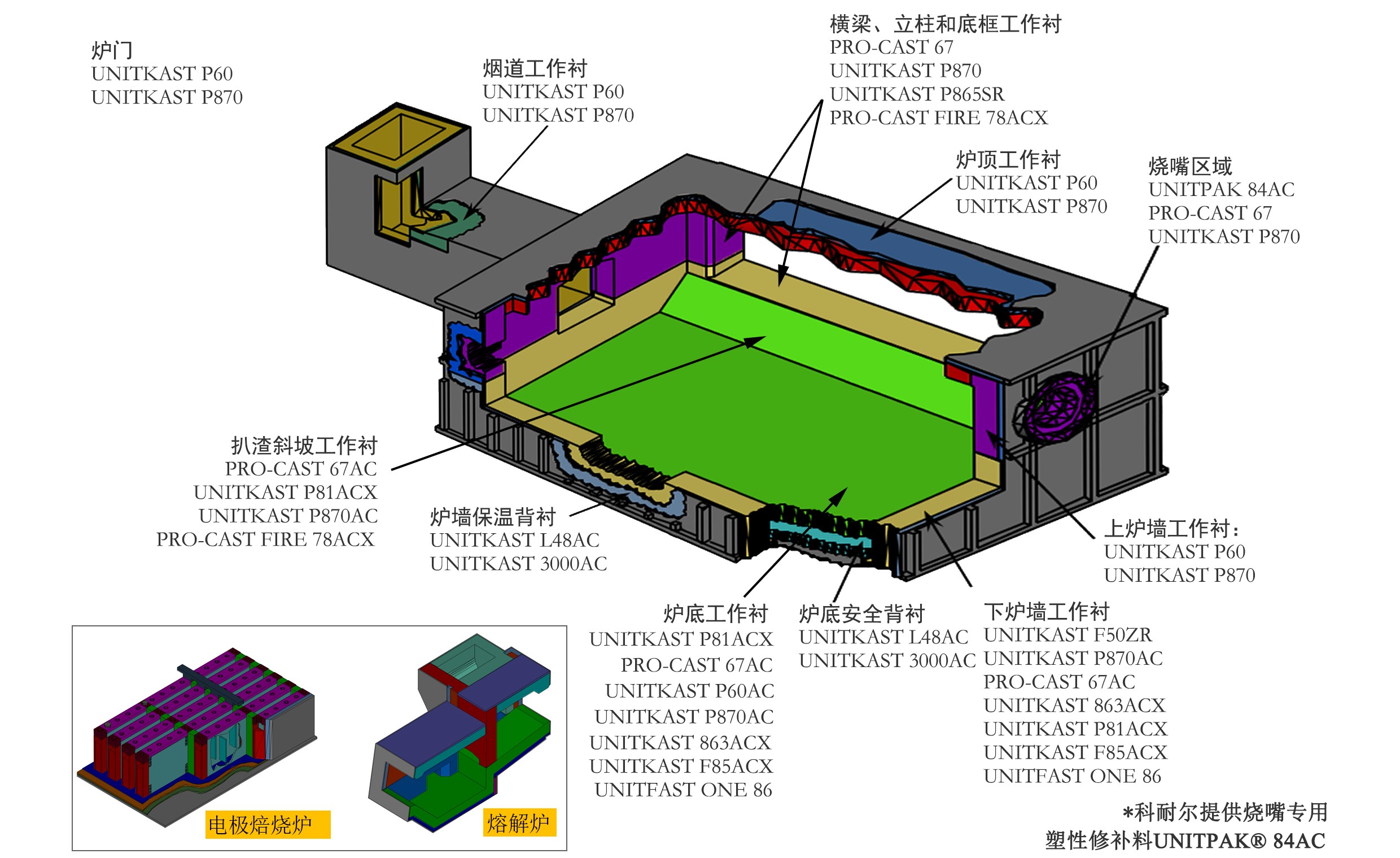

Kenair Refracotry Selection Guide For Aluminum Reverb Furnace
REFPLAT® Series Materials – Recommended Selection Criteria
The engineering design of refractory materials for Cornell furnace linings takes into account the refractory castables as the working lining environment of the furnace and the high-temperature thermal energy requirements, fully leveraging their characteristics:
Excellent wear resistance (ACX grade) | Elimination of brick joints wherever possible (monolithic construction) |
Superior high-strength performance | Easy-to-install monolithic lining structure |
Outstanding resistance to molten-aluminum erosion (AC grade) | Versatility across multiple installation methods |
Application by Zone (Flagship Products)
Burner Zone: PRO-CAST 77 Mullite-Corundum Castable
Furnace Well & Areas in Contact with Molten Aluminum: UNITKAST P81ACX High-Alumina-Corundum Castable
Door Frame Zone: UNITKAST P870 High-Alumina-Mullite Castable + Steel Fiber
Furnace Door & Roof Zones: UNITKAST P60 Aluminosilicate Low-Cement Castable
Roof Insulation Layer: UNITKAST 3000AC Insulating Backup Castable (Please consult before use)
Furnace Bottom Anti-Seepage Layer – strictly prohibited from direct flame contact: UNITKAST 2000 Anti-Seepage Heat-Resistant Castable (Please consult before use)
For further professional service, please contact us……
Appendix – Product Data Sheet
Physical and Chemical Indexes
Application | Product Description | Density g/cm3 | Max.TEMP C |
Remarks 我们的产品 对比AMP美矿产品 |
Working Lining | UNITKAST P60 | 2.45 | 1650 | MP50、MP51 |
UNITKAST 50 | 2.4 | 1650 | MC50 | |
PRO-CAST 67 | 2.65 | 1705 | QC72 | |
PRO-CAST FIRE 78ACX | 2.8 | 1705 | MC F78 | |
UNITKAST P81ACX | 2.81 | 1705 | MC P81ACX | |
UNITKAST P870AC | 2.65 | 1705 | ||
UNITKAST F50ZR | 2.65 | 1650 | MFLO ZR5 | |
Insulation Lining Cover Lining | UNITKAST 3000AC | 2.15 | 1425 | MC2600AC |
UNITKAST L48AC | 1.3 | 1345 | M-LITE 24AC | |
Unitkast Tuffloor | UNITKAST 2000 | 2.1 | 1371 | |
Maintenance | UNITPAK 76A | 2.59 | 1650 | MPHOS 76A |
UNITPAK 84AC | 2.8 | 1760 | SP 85AC |
Kenair® REFPLAT® Product Portfolio (refplat.com)
REFRACTORY | UNITKAST Series Low-cement & conventional-cement castables | UNITDRI Series Dense dry-vibratable (ramming) mixes |
UNITKAST P Series Working-lining low-cement castables | UNITPAK Series Plastic / moldable refractories | |
UNITKAST F Series Working-lining low-cement castables | UNITGUN Series Gunning (shotcrete) mixes | |
UNITKAST L SeriesLightweight insulating backup castables | COILGROUT Series Induction-coil grouts | |
ALLIEDCASTSpecialty-function refractories | UNITFAST Series Rapid-repair mixes | |
PRO-CASTLow-cement, ultra-low-cement & high-flow castables | PRECAST Series Precast shapes | |
RAMM Series Specialty-function ramming mixes | KNR Series Complementary / supporting products | |
KN series refractory castables |
